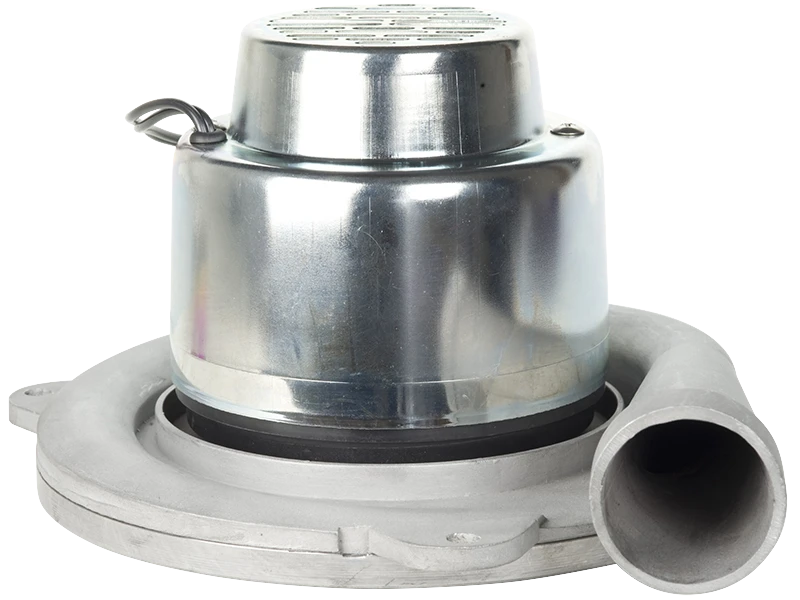

| Item | Vacuum Motor |
| Ambient Temp. Range | 40 Degrees C |
| Average Life | 1500 hr. |
| Bearings | Ball |
| Blower Stages | 1 |
| Body Dia. | 8.4" |
| CFM @ 2-In. Orifice | 166 |
| Discharge | Tangential |
| Duty | Intermittent |
| Efficiency Group | High |
| Enclosure | Open |
| Hz | 60 |
| Insulation Class | A |
| Max. Air Watts | 717 |
| Max. Amps | 15.1 |
| Motor Design | Universal AC/DC |
| Motor Enclosure Design | Open |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Lug |
| Motor Thermal Protection | None |
| Mounting | Tab |
| Mounting Brackets | Aluminium |
| Nominal Efficiency | 45% |
| Number of Speeds | 1 |
| Overall Height | 6" |
| Phase | 1 |
| Product Datasheet | ametek-lamb-122133-00.pdf |
| Thermal Protection | None |
| Vacuum (H2O Sealed) | 110 |
| Voltage | 120 VAC |
| Ship weight (kg) | 4.07 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 21.34 |
| Ship width (cm) | 21.34 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Voltage | Max. Amps | Blower Stages | Enclosure | CFM @ 2-In. Orifice | Price | |
|---|---|---|---|---|---|---|---|---|
 |
115334 | 120 VAC | 13 | 2 | Open Dripproof | 102.7 | €262.52 | |
 |
115937 | 120 VAC | 12.7 | 2 | Open Dripproof | 105.4 | €336.13 | |
|
116103-00 | 120 VAC | 13.8 | 3 | Open Dripproof | 92 | €348.11 | |
 |
116207-00 | 120 VAC | 9 | 2 | Open Dripproof | 104 | €109.22 | |
|
116119-00 | 120 VAC | 12.6 | 3 | Open Dripproof | 94 | €272.58 | |
 |
117465-13 | 120 VAC | 12.8 | 2 | Open Dripproof | 110 | €240.01 | |
 |
117507-00 | 120 VAC | 12.7 | 3 | Open Dripproof | 94 | €263.52 |
