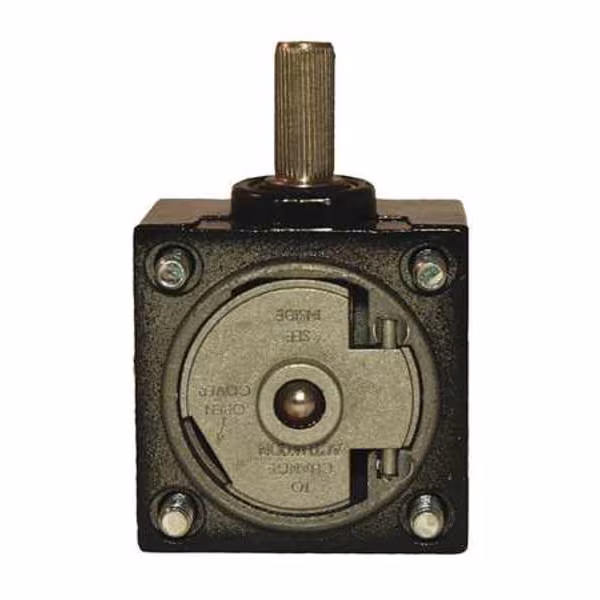

| Item | Limit Switch Head |
| Actuator Length | Not Specified |
| Actuator Location | Side |
| Actuator Style | Rotary |
| Amps | Not Applicable |
| Contact Form | Not Applicable |
| IP Rating | Not Rated |
| Movement | CW and CCW |
| NEMA Rating | 1, 3, 4, 4X, 6, 6P, 13 |
| Operating Force | 4 in.-lb. |
| Operating Temp. | 10 Degrees to 250 Degrees F |
| Travel | Pretravel 15 Degrees , Operating Travel 60 Degrees |
| Voltage Rating | 600VAC/250VDC |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 5.84 |
| Ship width (cm) | 4.83 |
| HS code | 8536509055 |
| Country of Origin | US |
| Product | Model | Actuator Length | Actuator Location | Amps | Contact Form | IP Rating | Movement | NEMA Rating | Operating Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
201LS1 | 1.5" | Side | 10 | 1NC/1NO, SPDT, Snap Action, Double Break | Not Rated | Pretravel (PT) 20 Degrees max, Overtravel (OT) 30 Degrees min, Differential Travel (DT) 12 Degrees max. | 1, 3, 4, 6, 13 | 3 lb. max. | €441.50 | |
 |
201LS10 | 0.58" to 5.56" | Side | 10 | 1NC/1NO, SPDT, Snap Action, Double Break | Not Rated | Pretravel (PT) 20 Degrees max, Overtravel (OT) 30 Degrees min, Differential Travel (DT) 12 Degrees max. | 1, 3, 4, 6, 13 | 5 oz. max. | €849.33 | |
 |
201LS3 | 1.2" to 3.5" | Side | 10 | 1NC/1NO, SPDT, Snap Action, Double Break | Not Rated | Pretravel (PT) 20 Degrees max, Overtravel (OT) 30 Degrees min, Differential Travel (DT) 12 Degrees max. | 1, 3, 4, 6, 13 | 3 lb. max. | €811.27 | |
|
201LS47 | 0.58" to 5.56" | Side | 10 | 1NC/1NO, SPDT, Snap Action, Double Break | Not Rated | Pretravel (PT) 5 Degrees max, Overtravel (OT) 30 Degrees min, Differential Travel (DT) 4 Degrees max. | 1, 3, 4, 6, 13 | 5 oz. max. | €1,508.02 | |
 |
GLZ1AA | Not Specified | Top | Not Applicable | Not Applicable | 67 | CW and CCW | 1 , 4, 12, 13 | 3.00 in.-lb | €102.17 | |
 |
LSZ1AB | Not Specified | Side | Not Applicable | Not Applicable | Not Rated | CW and CCW | 1, 3, 4, 4X, 6, 6P | 4.00 in.-lb | €236.33 | |
 |
LSZ1B | Not Specified | Top | Not Applicable | Not Applicable | Not Rated | CW and CCW | 1, 3, 4, 4X, 6, 6P | 2.50 in.-lb | €366.85 |
