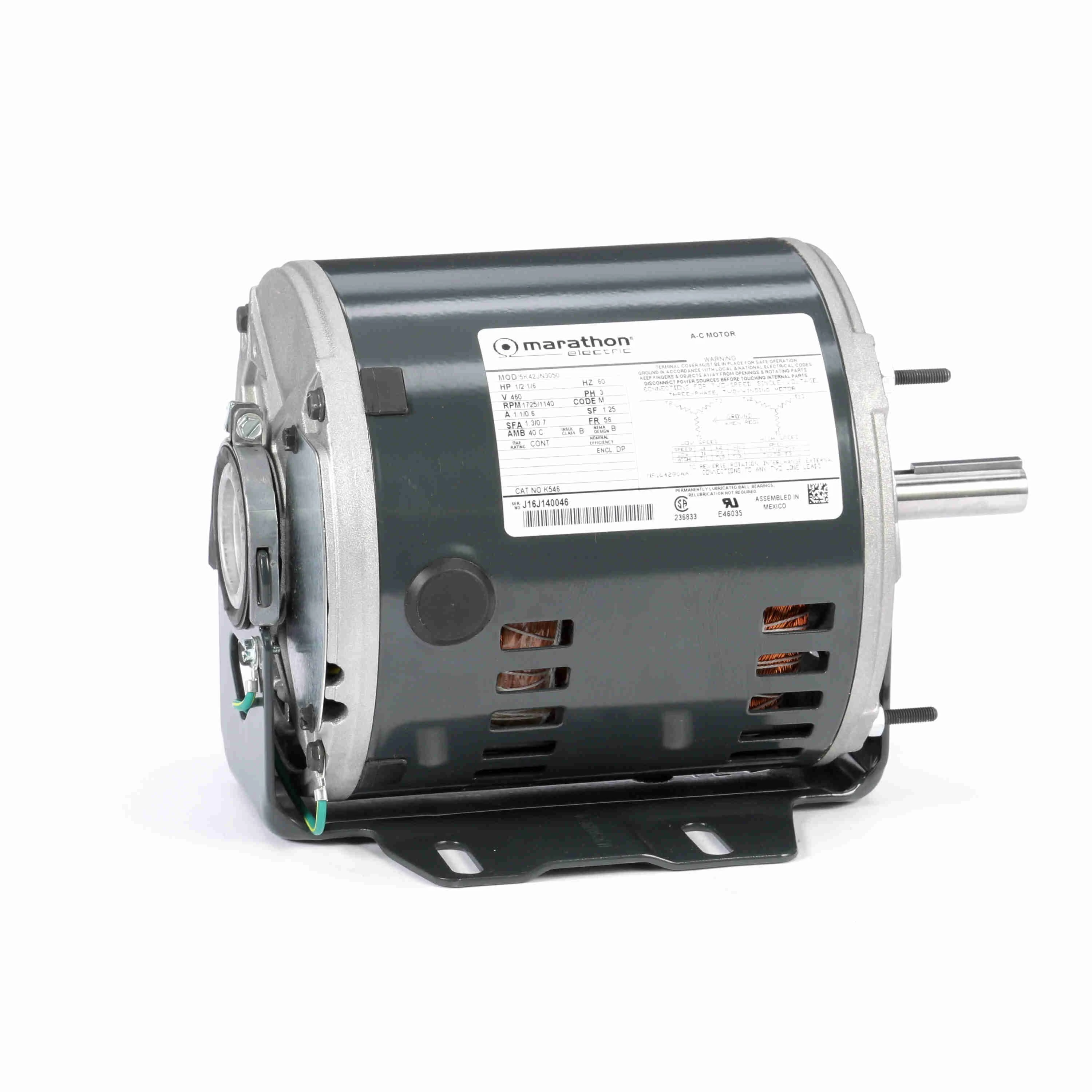

| Item | HVAC Motor |
| Ambient (C) | 40 |
| Assembly | F1 ONLY |
| Duty | CONTINUOUS AOM |
| Efficiency | N/A % |
| Enclosure | OPAO |
| Frame | 48Y |
| Full Load Amps | 1.6 |
| HP | 1/4 |
| Hz | 60 |
| Insulation Class | B |
| kW | 0.19 |
| Mounting | Resilient Rings - Extended Studs |
| NEMA Design | NO DESIGN CODE |
| Orientation | Horizontal |
| Phase | 1 |
| Rotation | SELECTIVE CCW |
| RPM | 1075 |
| Service Factor | 1.0 |
| Thermal Protection | Automatic Protector (under locked rotor only) |
| Voltage | 277 |
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 28.09 |
| Ship width (cm) | 17.15 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Capacitor Required | Duty | Enclosure | Frame | Full Load Amps | HP | kW | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A11O1674 | 2MDV7 | Continuous | - | 48Y | 6.1 | 1/2 | - | 5" | €237.72 | |
 |
048A8O183 | 2MDV4 | Continuous | - | 48Y | 2.8 | 1/3 | - | 6 11/16" | €86.52 | |
 |
048A11O787 | - | CONTINUOUS AOM | OPAO | 48Z | 10.2 | 3/4 | 0.56 | - | €319.61 | |
 |
048A11O1755 | - | CONTINUOUSAOM | OPAO | 48Y | 6.2 | 1/2 | 0.37 | - | €192.63 | |
 |
048A11O1769 | - | CONTINUOUS AOM | OPAO | 48Z | 4.6 | 1/3 | 0.246 | - | €242.61 | |
 |
048A17O153 | - | CONTINUOUS AOM | OPAO | 48Z | 7.4 | 1/2 | 0.37 | - | €280.50 | |
 |
048A11O2046 | - | CONTINUOUS AOM | OPAO | 48Z | 5.8-5.6 | 3/4 | 0.56 | - | €325.11 |
