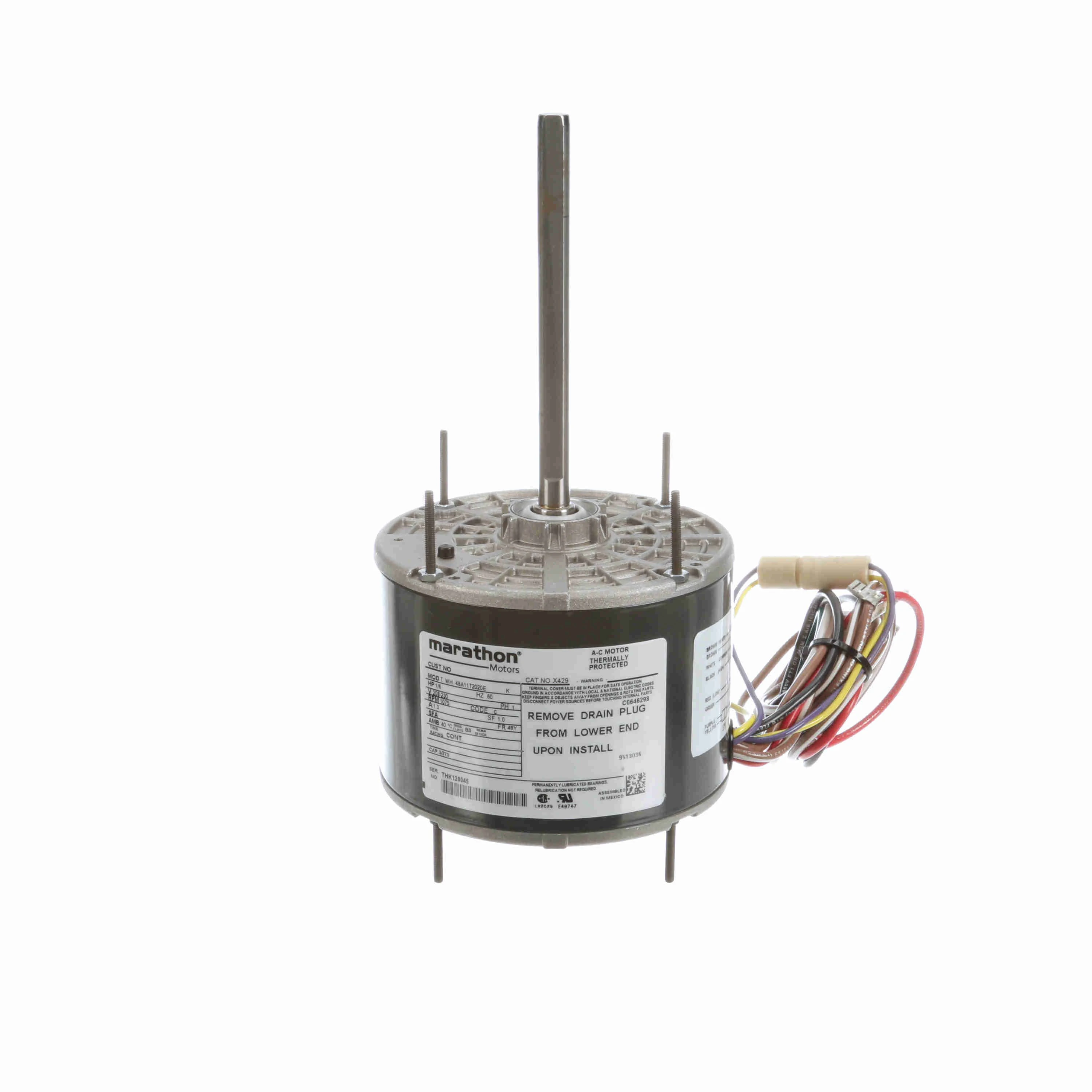

| Item | HVAC Motor |
| Ambient (C) | 40 |
| Assembly | F1 ONLY |
| Duty | CONT.AOM |
| Efficiency | N/A % |
| Enclosure | TEAO |
| Frame | 48Y |
| Full Load Amps | 1.3 |
| HP | 1/6 |
| Hz | 60 |
| Insulation Class | B |
| kW | 0.13 |
| Mounting | Extended Studs - Footless |
| NEMA Design | NO DESIGN CODE |
| Orientation | Horizontal |
| Phase | 1 |
| Rotation | SELECTIVE CCW |
| RPM | 1075 |
| Service Factor | 1.0 |
| Thermal Protection | Automatic Protector (under locked rotor only) |
| Voltage | 208-230 |
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 17.63 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 17.78 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Duty | Enclosure | Frame | Full Load Amps | HP | kW | Mounting | NEMA Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A11T2008 | Continuous | - | 48Y | 1.2-1.1 | 1/6 | - | - | - | €64.33 | |
 |
048A11T569 | CONTINUOUSAOM | TEAO | 48Y | 1.4 | 1/4 | 0.19 | Extended Studs - Footless | N | €276.84 | |
 |
048A11T619 | CONT.AOM | TENV | 48Y | 3.4 | 1 | 0.75 | Round | NO DES CODE | €444.89 | |
 |
048A17T96 | CONTINUOUS AOM | TEAO | 48Z | 2.9-2.6 | 1/2 | 0.37 | Extended Studs - Footless | NO DESIGN CODE | €315.34 | |
 |
048A11T581 | CONT.AOM | TEAO | 48Y | 2.1 | 3/4 | 0.56 | Extended Studs - Footless | NO DESIGN CODE | €425.95 | |
 |
048A11T571 | CONTINUOUS AOM | TEAO | 48Z | 2.75-2.7 | 1/2 | 0.37 | Extended Studs - Footless | N | €329.99 | |
 |
048A11T580 | CONT.AOM | TEAO | 48Y | 1.4 | 1/2 | 0.37 | Extended Studs - Footless | NO DESIGN CODE | €364.84 |
