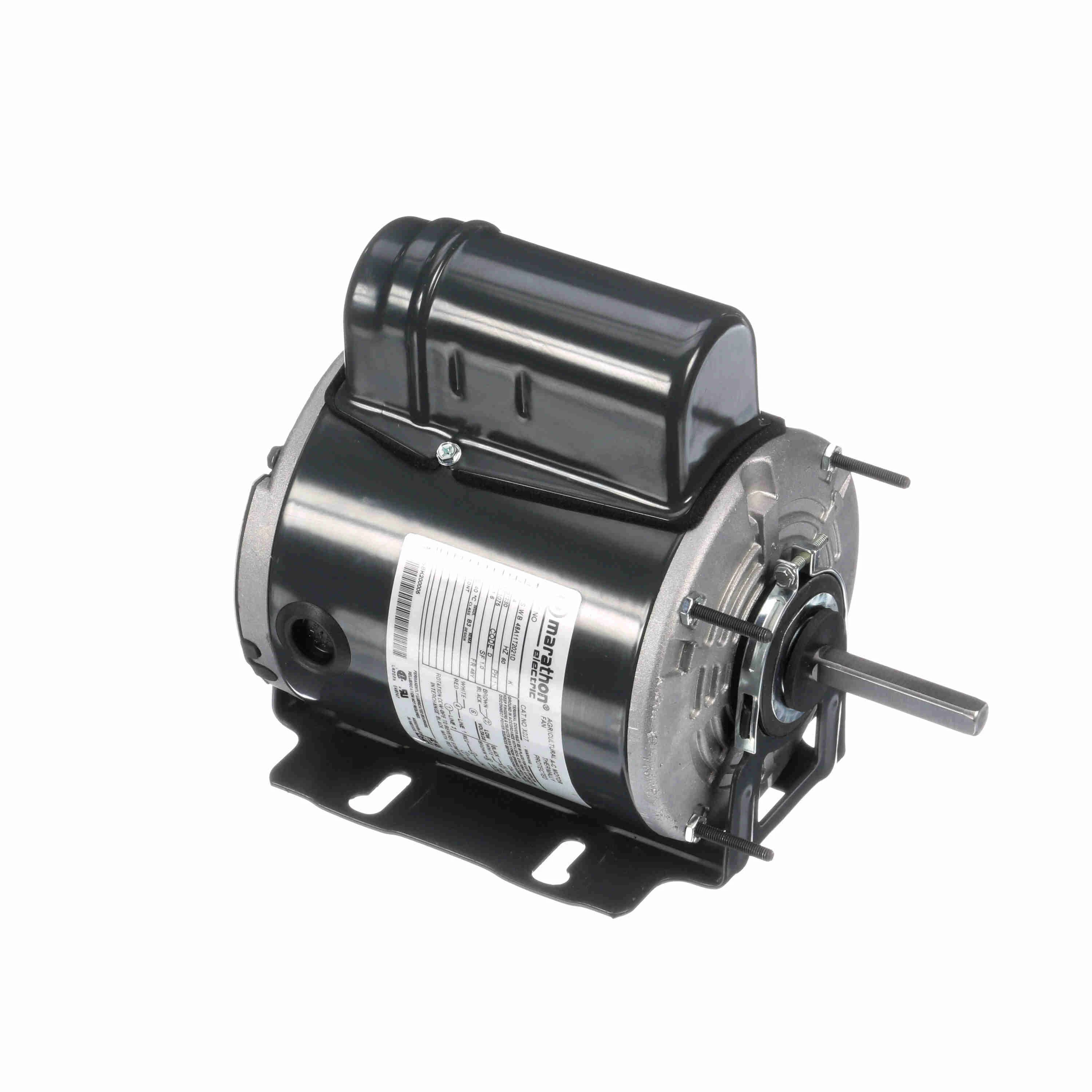

| Item | Poultry Fan Motor |
| Bearings | Ball |
| Body Dia. | 5-11/16" |
| Duty | Continuous |
| Frame | 48Y |
| Frame Material | Rolled Steel |
| Full Load Amps | 3.2/1.6 |
| HP | 1/4 |
| Hz | 60 |
| Insulation Class | B |
| Length Less Shaft | 7.5" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | H VAC/R |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Dr Fan/Blower |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1075 |
| Nominal Efficiency | 59.5% |
| Number of Speeds | 1 |
| Overall Length | 10 1/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2.25" |
| Ring to Ring Center | 7.55" |
| RPM Range | 1001-1100 |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 9/16" |
| Stud Pattern | 1-3/25" x 5-3/25" |
| Voltage | 115/230 |
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Nameplate RPM | Nominal Efficiency | Overall Length | Ring to Ring Center | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A11T2022 | 48Y | 4.2/2.1 | 1/3 | 8.25" | 1075 | 68% | 10 13/16" | 7-22/25" | €316.48 | |
 |
048A11T2023 | 48Y | 6.4/3.2 | 1/2 | 8.25" | 1075 | 68% | 10 13/16" | 7-22/25" | €339.08 | |
 |
048A17T118 | 48Y | 3.6/1.8 | 1/4 | 8.5" | 1625 | 68% | 11 1/16" | 8-3/25" | €295.19 | |
 |
048A17T119 | 48Y | 5.4/2.7 | 1/2 | 9.25" | 1625 | 72% | 11 13/16" | 8-20/23" | €369.05 | |
 |
048A17T2002 | 48Z | 2.9/1.4 | 1/4 | 7.5" | 1625 | 65% | 10 1/16" | 7.55" | €268.28 | |
 |
048A17T2003 | 48Z | 4.4/2.2 | 1/3 | 7.5" | 1625 | 68.5% | 10 1/16" | 7.55" | €298.42 | |
 |
048A17T2004 | 48Z | 6.0/3.0 | 1/2 | 8.5" | 1625 | 70% | 10 13/16" | 7-22/25" | €324.06 |
