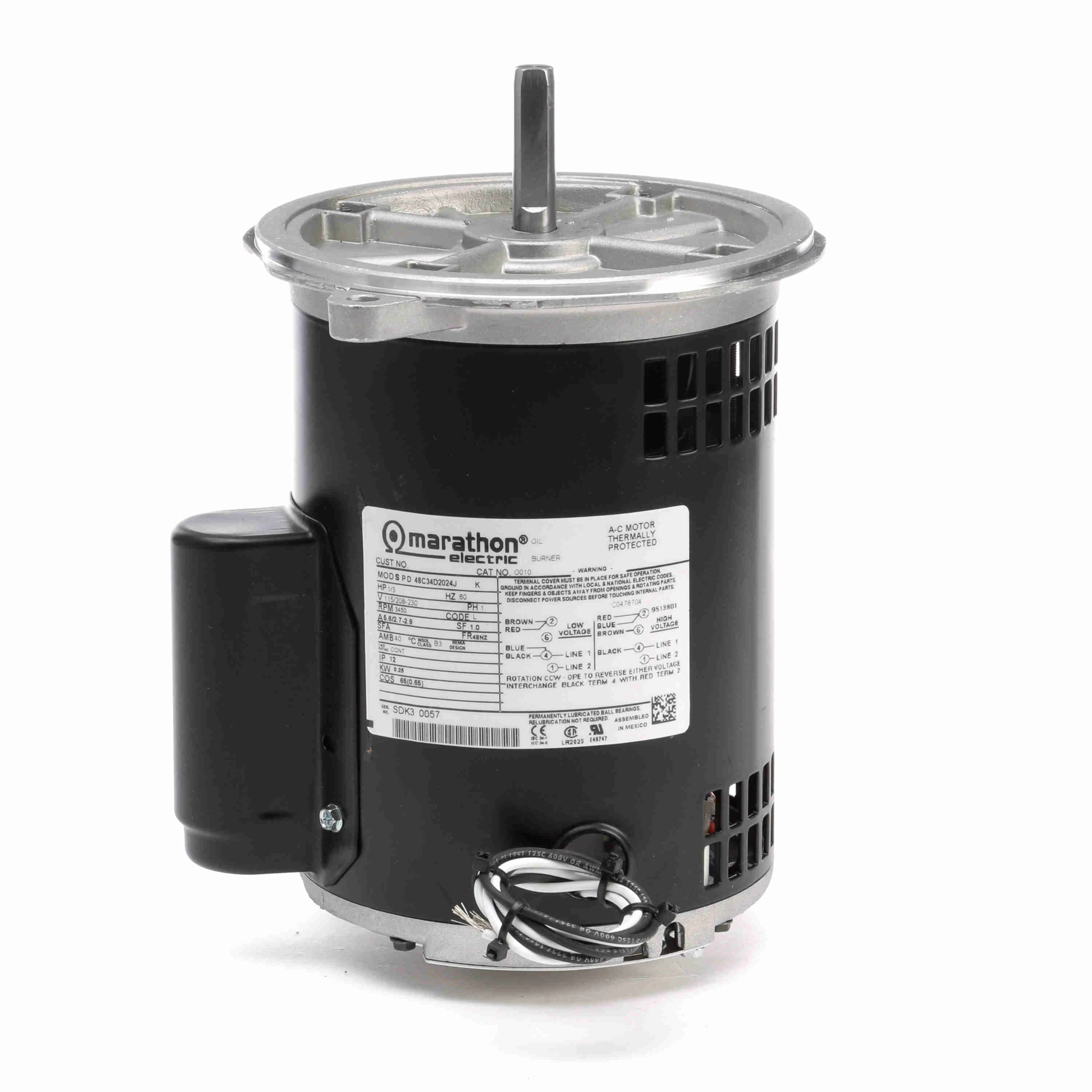

| Item | Oil Burner Motor |
| Ambient (C) | 40 |
| Assembly | F1 ONLY |
| Duty | Continuous |
| Efficiency | 64 % |
| Enclosure | DP |
| Frame | 48NZ |
| Full Load Amps | 5.6/2.7-2.8 |
| HP | 1/3 |
| Hz | 60 |
| Insulation Class | B |
| kW | 0.25 |
| Mounting | N-Flange Footless |
| NEMA Design | NO DESIGN CODE |
| Orientation | Horizontal |
| Phase | 1 |
| Rotation | SELECTIVE CCW |
| RPM | 3600 |
| Service Factor | 1.0 |
| Thermal Protection | Manual Protector |
| Voltage | 115/208-230 |
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Enclosure | Frame | Full Load Amps | HP | Hz | kW | Mounting | Orientation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH33GN5014U | TENV | 48N | 4.9 | 1/3 | 60 | - | - | Horizontal or Vertical | €282.94 | |
 |
048C34S24 | SEMI ENCLOSED | 48N | 2.95/1.5 | 1/5 | 60 | 0.15 | N-Flange Footless | Horizontal | €278.67 | |
 |
048S17T286 | TENV | 48N | 2.6 | 1/8 | 60 | 0.09 | N-Flange Footless | Horizontal | €184.56 | |
 |
048S17T290 | TENV | 48N | 3.3 | 1/6 | 60 | - | - | Horizontal or Vertical | €196.17 | |
 |
048S34S2005 | SEMI ENCLOSED | 48MZ | 2.7A | 1/6 | 60 Hz | 0.125 | Round | Horizontal | €239.55 | |
 |
048C34D2028 | DP | 48NZ | 7.4/3.5-3.7 | 1/2 | 60 | 0.37 | N-Flange Footless | Horizontal | €374.00 | |
 |
048S34S2003 | SEMI ENCLOSED | 48NZ | 4.2 | 1/4 | 60 | 0.19 | N-Flange Footless | Horizontal | €278.67 |
