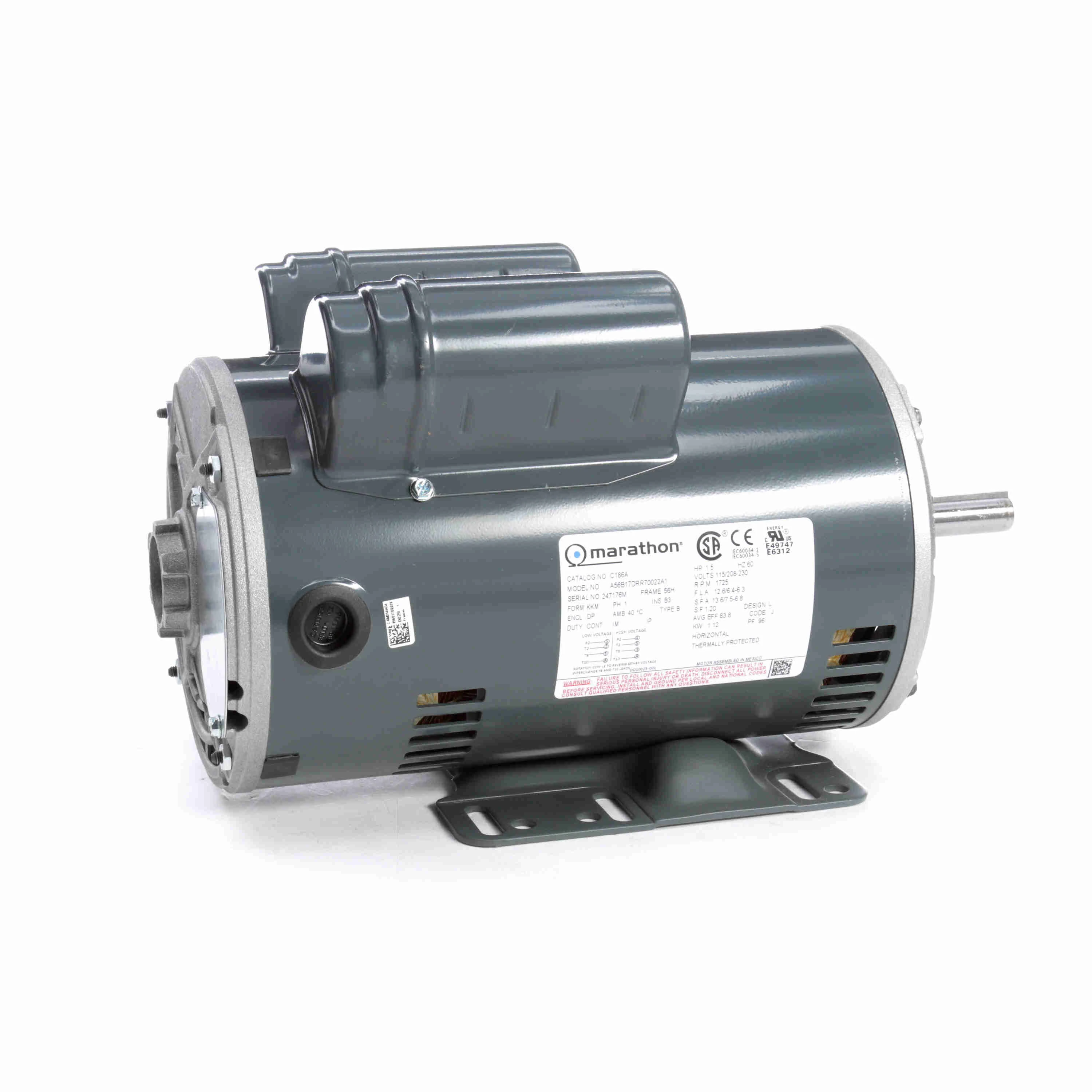

| Item | General Purpose Motor |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency Group | Premium Efficient |
| Frame | 56H |
| Frame Material | Rolled Steel |
| Full Load Amps | 12.6/6.4-6.3 |
| HP | 1.5 |
| Hz | 60 |
| Insulation Class | B |
| Inverter Rated | No |
| Length Less Shaft | 12.125" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Nameplate RPM | 1725 |
| Nominal Efficiency | 81.5% |
| Overall Length | 14" |
| Phase | 1 |
| RPM Group | 1701-1800 |
| RPM Range | 1701-1800 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.875" |
| Voltage | 115/208-230 |
| Ship weight (kg) | 21.35 |
| Ship height (cm) | 24.43 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501406040 |
| Country of Origin | MX |
| Product | Model | Efficiency Group | Frame | Full Load Amps | HP | Hz | Length Less Shaft | Max. Ambient Temp. | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH39QN9537X | Standard | 48 | 3.9 | 1/6 | 60 | 7.437" | 40 Degrees C | Split-Phase | €234.67 | |
 |
5KH39QN9538 | Standard | 48 | 5.1 | 1/4 | 60 | 7.437" | 40 Degrees C | Split-Phase | €239.55 | |
 |
5KH39QN9686X | Standard | 48 | 5.1 | 1/4 | 60 | 7.437" | 40 Degrees C | Split-Phase | €246.89 | |
 |
5KCR49WN0270T | Standard | 56HZ | 22.0/10.9-11.0 | 2 | 60 | 12 1/16" | 40 Degrees C | Capacitor-Start/Run | €906.28 | |
 |
056B34D2029 | - | 56 | 10.6/5.5-5.3 | 1 | 60 | - | - | - | €369.05 | |
 |
056B34D11019 | - | 56 | 7.2/3.6 | 0.75 | - | 9 9/16" | 40 deg c | capacitor start | €399.06 | |
 |
056B11D15505 | - | 56 | - | 1/2 | 60 | - | - | - | €777.34 |
