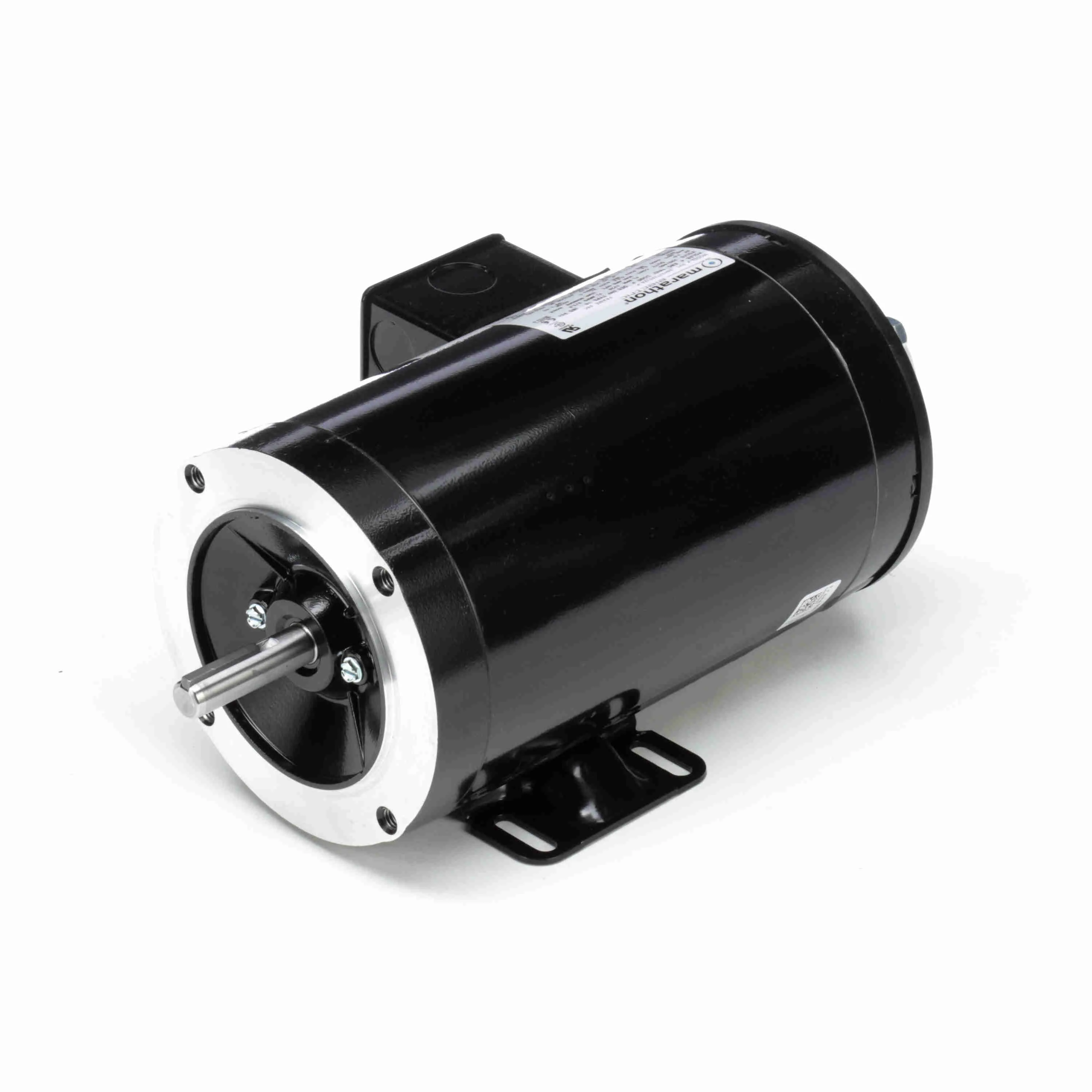

LEESON 056H17T15527 Y282 / 56H17T15527A Plus Inverter Duty Encoder Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Tuesday, Oct 1
€1,705.00 /unit
Add To Cart
Request a Quote
Payment Methods
Get it by Tuesday, Oct 1
Payment Methods
Item | Vector Motor |
Ambient (C) | 40 |
Assembly | F1 ONLY |
Duty | Continuous |
Efficiency | 84 % |
Enclosure | TENV |
Frame | 56C |
Full Load Amps | 3/1.5 |
HP | 1 |
Hz | 60 |
Insulation Class | H |
kW | 0.75 |
Mounting | C-Face - Removable Base |
NEMA Design | A |
Orientation | Horizontal |
Phase | 3 |
RPM | 1800 |
Service Factor | 1.0 |
Voltage | 230/460 |
Ship weight (kg) | 18 |
Ship height (cm) | 24.77 |
Ship length (cm) | 49.05 |
Ship width (cm) | 28.42 |
HS code | 8501516040 |
Country of Origin | MX |
Product | Model | Base | Efficiency Group | Enclosure | Frame | Frame Material | Full Load Amps | HP | kW | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
145THTR15540 | Removable | Standard | Totally Enclosed Nonventilated | 145TC | Rolled Steel | 4.8/2.4 | 1.5 | - | €1,804.98 | ||
145THTN17034 | Rigid | Epact | Totally Enclosed Nonventilated | 145TC | Cast Iron | 6.0/3.0 | 2 | - | €2,421.36 | ||
056H17T15528 | - | - | TENV | 56C | - | 2.4/1.2 | 3/4 | 0.56 | €1,610.31 | ||
056H17T15526 | - | - | TENV | 56C | - | 1.6/.8 | 1/2 | 0.37 | €1,538.64 | ||
143THTR15535 | - | - | TENV | 143TC | - | 3/1.5 | 1 | 0.75 | €1,834.57 |
