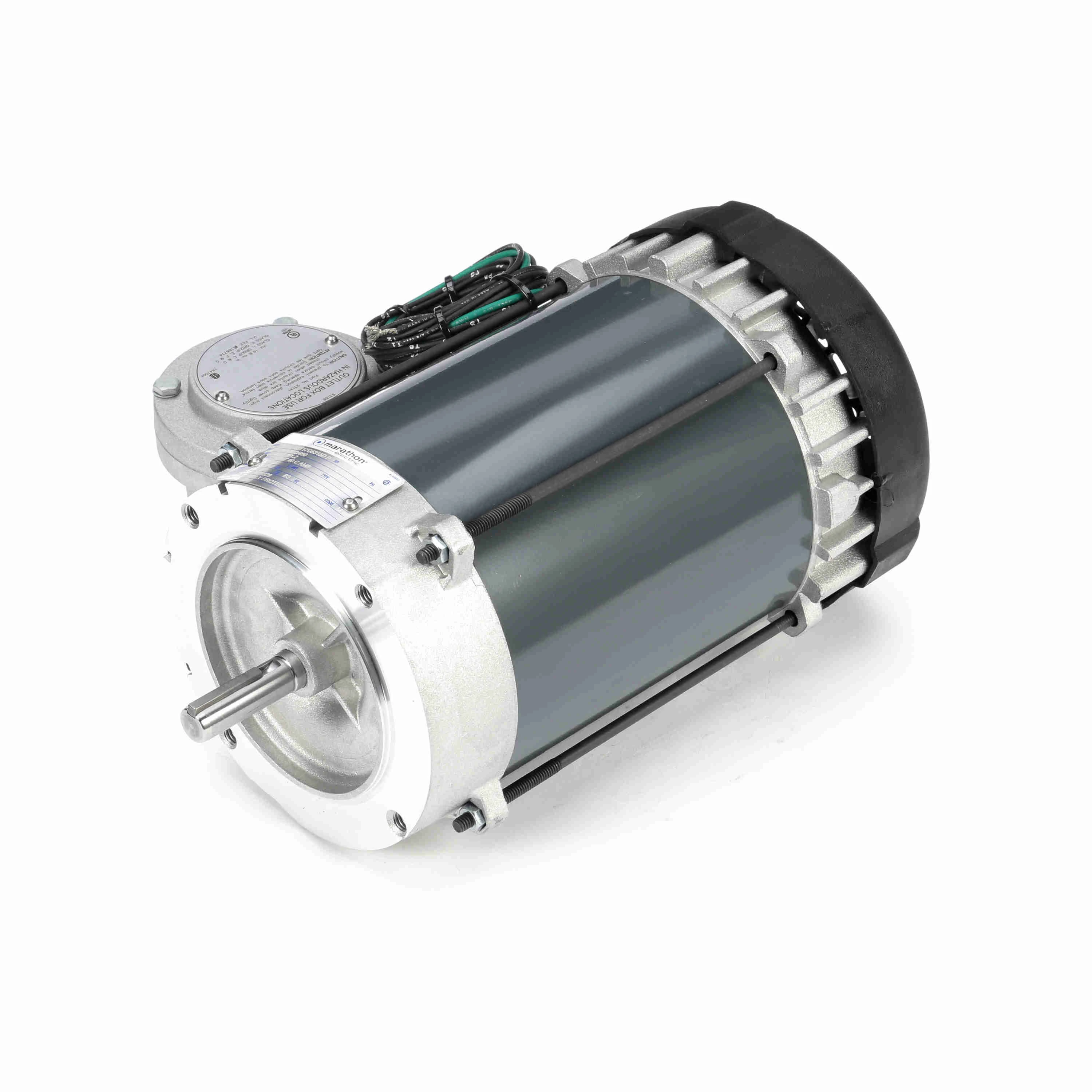

LEESON 056T17G5315 G829 / 56T17G5315D Explosion Proof Motor, 0.50 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM
Get it by Tuesday, Oct 1
€929.50 /unit
Add To Cart
Request a Quote
Payment Methods
Get it by Tuesday, Oct 1
Payment Methods
| Item | Hazardous Location Motor |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency Group | Standard |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Full Load Amps | 2.3-2.4/1.2 |
| Hazardous Location Class | 1 C,D / 2 F,G |
| HP | 1/2 |
| Hz | 60 |
| Insulation Class | B |
| Lead Length | 12" to 18" |
| Length Less Shaft | 11.875" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Hazardous Locations |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Hazardous Location |
| Motor Mounting Type | Face |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1725 |
| NEMA Design | None |
| Nominal Efficiency | 68% |
| Overall Length | 13 15/16" |
| Phase | 3 |
| RPM Range | 1701-1800 |
| Service Factor | 1.00 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/16" |
| Temp. Code | T3B |
| Thermal Protection | Auto |
| Voltage | 208-230/460 |
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501514040 |
| Country of Origin | MX |
| Product | Model | Full Load Amps | Hazardous Location Class | HP | Item | Lead Length | Length Less Shaft | NEMA Design | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17E5311 | 1.2-1.2/0.60 | 1 C,D / 2 F,G | 1/3 | Hazardous Location Motor | 12" to 12" | 9 15/16" | None | 74.5% | €883.67 | |
 |
056T17E5312 | 0.44 | EXP PROOF CL I GR C&D CL II GR F&G T3B | 1/4 | Explosion Proof Motor | - | - | B | - | €836.00 | |
 |
056T17E5310 | 1.1-1.1/.55 | EXP PROOF CL I GR C&D CL II GR F&G T3B | 1/4 | Explosion Proof Motor | - | - | B | - | €836.00 |
