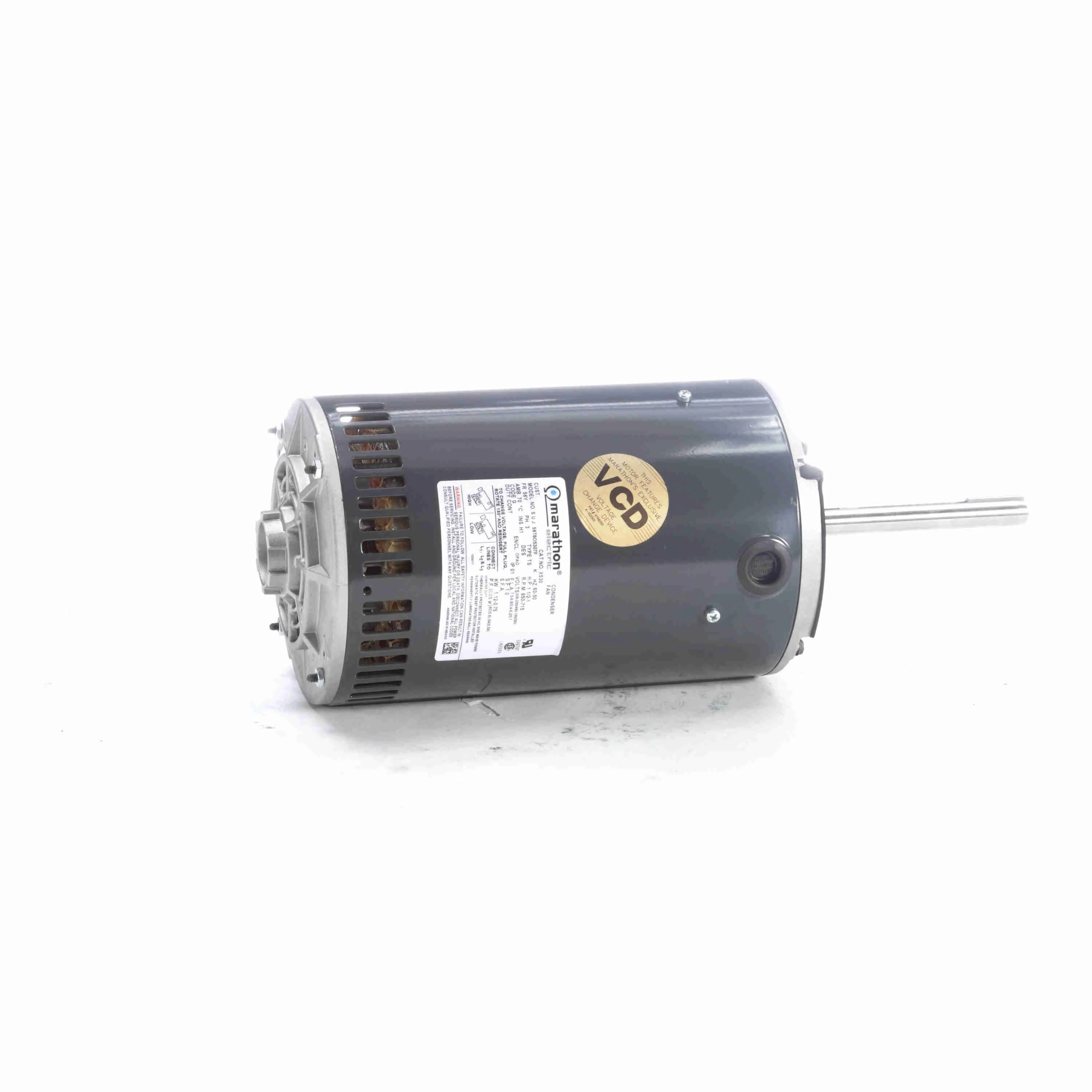

| Item | HVAC Motor |
| Ambient (C) | 70 |
| Assembly | F1 ONLY |
| Duty | CONTINUOUS AOM |
| Efficiency | 72 % |
| Enclosure | OPAO |
| Frame | 56Y |
| Full Load Amps | 7.5-6.8/3.4 |
| HP | 1.5 |
| Hz | 60 |
| Insulation Class | H |
| kW | 1.12 |
| Mounting | Belly Band - Footless |
| NEMA Design | B |
| Orientation | Horizontal |
| Phase | 3 |
| RPM | 900 |
| Service Factor | 1.0 |
| Thermal Protection | Automatic Protector (under locked rotor only) |
| Voltage | 208-230/460 |
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Duty | Enclosure | Frame | Full Load Amps | HP | Insulation Class | kW | NEMA Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T11O5303 | CONTINUOUS AOM | OPAO | 56Z | 5.5-5.4/2.7 | 1.5 | H | 1.12 | NO DESIGN CODE | €562.58 | |
 |
056T11O5302 | CONTINUOUS AOM | OPAO | 56Z | 4-4.2/2.1 | 1 | H | 0.75 | NO DESIGN CODE | €516.61 | |
 |
056T11O5304 | CONTINUOUSAOM | OPAO | 56Y | 7.2-6.8/3.4 | 2 | H | 1.49 | NO DESIGN CODE | €610.37 | |
 |
5K49RN6429S | Continuous | DP | 56Z | 1.6 | 1 | B | - | - | €698.50 | |
 |
056T8O5302 | CONTINUOUSAOM | OPAO | 56Y | 5.3-5.3/2.65 | 1 | H | 0.75 | NO DESIGN CODE | €974.11 | |
 |
056T11O5300 | CONTINUOUS AOM | OPAO | 56Y | 2.4-2.7/1.35 | 1/2 | H | 0.37 | NO DESIGN CODE | €754.73 | |
 |
5K38SN267S | Continuous | Open | 48Z | 3.3-3.8/1.9 | 3/4 | B | - | B | - | RFQ
|
