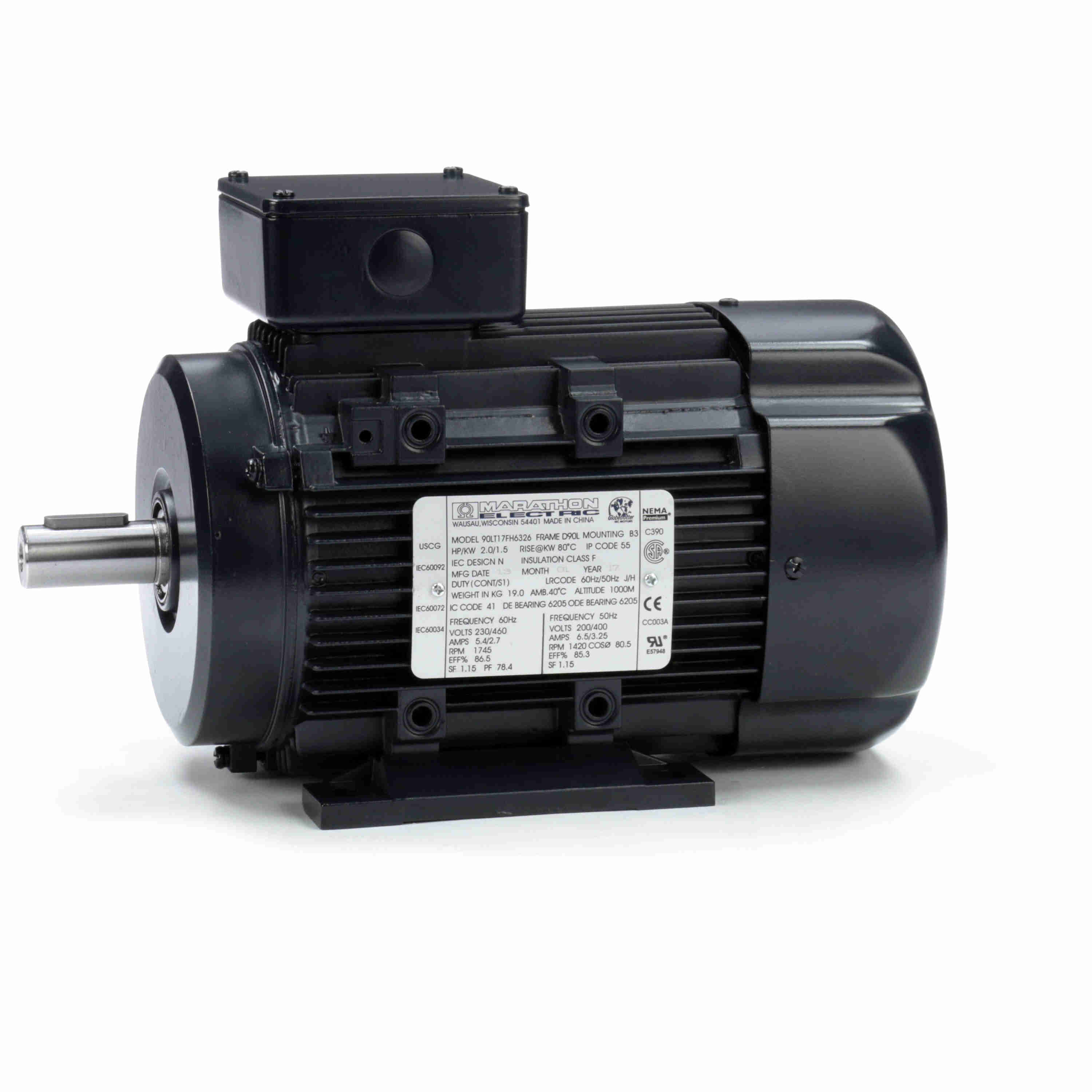

Marathon 090LT17FH6326 metric frame motor converts AC power into torque. It is ideal for driving mechanical loads in pumps, compressors, conveyors, fans, material handling equipment and machine tools. This torque is the measurement of twisting or rotational force.
Features:
- Marathon 090LT17FH6326 metric frame motor has a MAX GUARD Class F insulation system to offer unlimited lead length between the drive and the motor.
- It delivers constant power with a continuous duty cycle and 3 phase operation, ensuring smooth performance.
- The ball bearing maintains sealing and reduces motor friction.
- It features aluminium frame construction to offer good electrical and thermal conductivity.
- This motor comes with a TEFC enclosure to keep motor windings cool, dry and clean.
- It has 90L frame size and squirrel cage induction for speed regulation.
- This model has reversible IEC shaft rotation and can operate at a maximum speed of 1745 rpm, with 2 hp torque.
Standards and Approvals:
Frequently Asked Questions:
Q. Which company makes Marathon Electric motors?
A. Marathon Electric is a part of the Regal Rexnord family of companies.
Q. What is the difference between 1, 2 and 3 phase motors?
A.
- 1-phase motor: Electricity flows through a single conductor.
- 2-phase motor: Electricity flows through 4-wire conductors (2 for each phase).
- 3-phase motor: Electricity flows through 3 separate conductors.
