LEESON 102918.00 C4T17NH12A General Purpose Motor | AJ2PQA C4T17NH12A

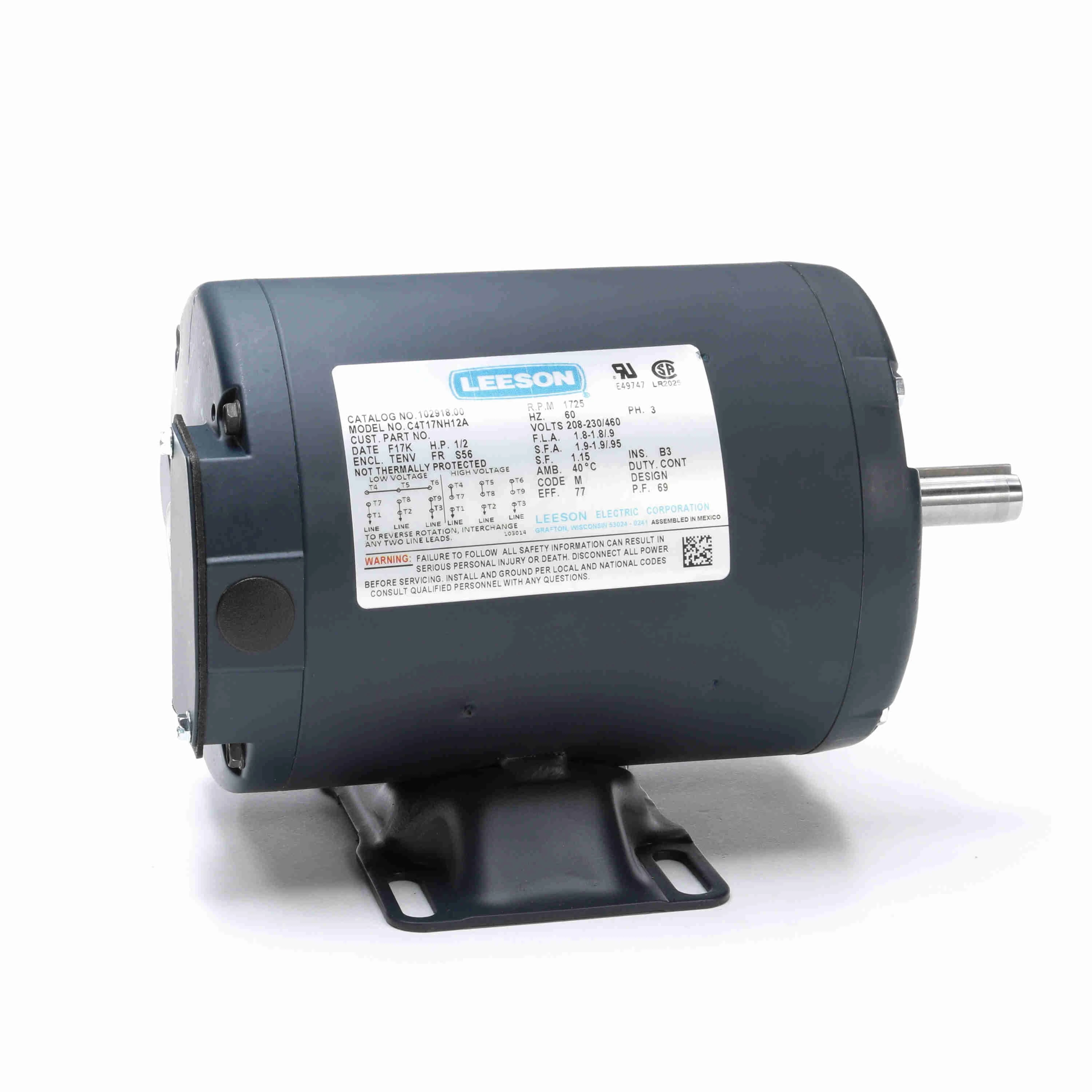

LEESON 102918 C4T17NH12A General Purpose Motor, 0.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Item: AJ2PQAModel: 102918Cross Ref: C4T17NH12A
In Stock

Get it by Tuesday, Oct 1

€469.42 /unit
Add To Cart
Request a Quote

Payment Methods

Product Specifications:

ItemGeneral Purpose Motor
AssemblyLO102918
CodeM
DutyContinuous
EnclosureTENV
FrameS56
Full Load Amps1.8-1.8 / .9
HP1/2
Hz60
Insulation ClassB
kW0.37
LubricationVERIFY
Max. Ambient Temp.40
MountingRigid
PackagingB
Phase3
Power Factor69
RotationREV
RPM1800
Service Factor1.15
Shaft Dia.5/8"
TypeTN
Voltage208-230 / 460

Shipping Info:

Ship weight (kg) 9.45
Ship height (cm)23.83
Ship length (cm)32.39
Ship width (cm)24.36
Country of OriginMX

Product Details:

  • Eff 100%: 77
  • Bearing OPE: 6203
  • Bearing PE: 6203
  • Nameplate: A-92005-4
  • Winding: TE48453
  • GROUP: 3
  • Paint: BLUE - LEESON (ENAMEL)
  • S. F Amps: 1.9-1.9 / .95
