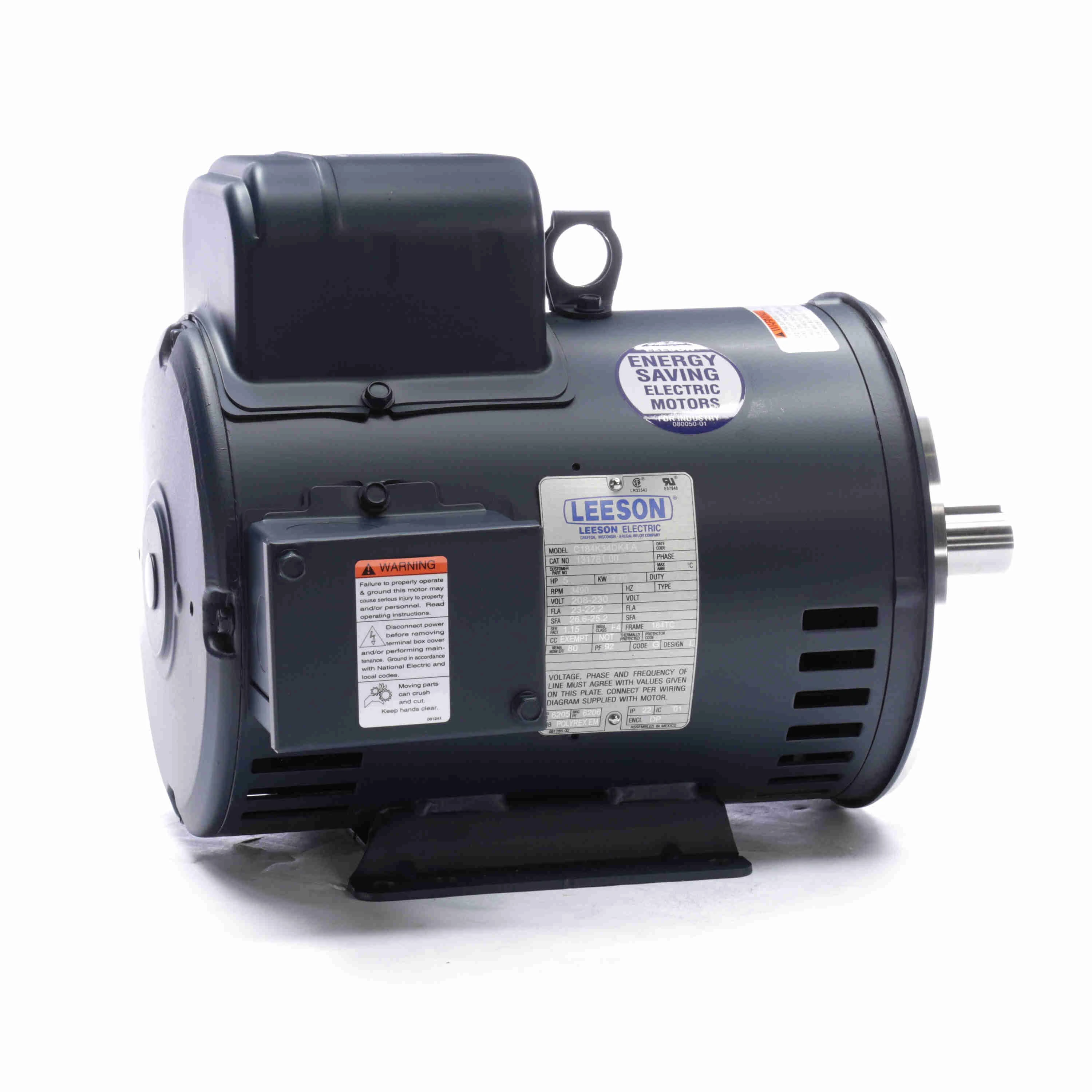

LEESON 131781 C184K34DK4A General Purpose Motor, 5 HP, 1 Phase, 60 Hz, 208-230V, 3600 RPM
Get it by Tuesday, Oct 1
€1,207.47 /unit
Add To Cart
Request a Quote
Payment Methods
Get it by Tuesday, Oct 1
Payment Methods
| Item | General Purpose Motor |
| Assembly | 180-016 |
| Code | G |
| Design | L |
| Duty | Continuous |
| Enclosure | DP |
| Frame | 184TC |
| Full Load Amps | 23-22.2 |
| HP | 5 |
| Hz | 60 |
| Insulation Class | F |
| kW | 3.7 |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40 |
| Mounting | Rigid |
| Packaging | B |
| Phase | 1 |
| Power Factor | 92 |
| Rotation | SELECTIVE CCW |
| RPM | 3600 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Type | KD |
| Voltage | 208-230 |
| Ship weight (kg) | 32.85 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
| Product | Model | Assembly | Frame | Full Load Amps | HP | Insulation Class | Item | kW | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
131629 | 180-014 | 184TC | 33.8 / 16.9 | 3 | F | Single Phase Motor | 2.24 | LEJ36BB | €989.69 | |
 |
132043 | 180-016 | 184TC | 34-31 | 7.5 | F | General Purpose Motor | 5.6 | 9700K66 | €1,253.10 | |
 |
140806 | 210-008.02 | 215TC | 36 | 7.5 | F | General Purpose Motor | 5.6 | - | €1,290.18 | |
 |
E113700.00 | - | 56HC | 13 / 6.5 | 1.5 | B | Single Phase Motor | 1.12 | CEJ50CA | €848.93 |
