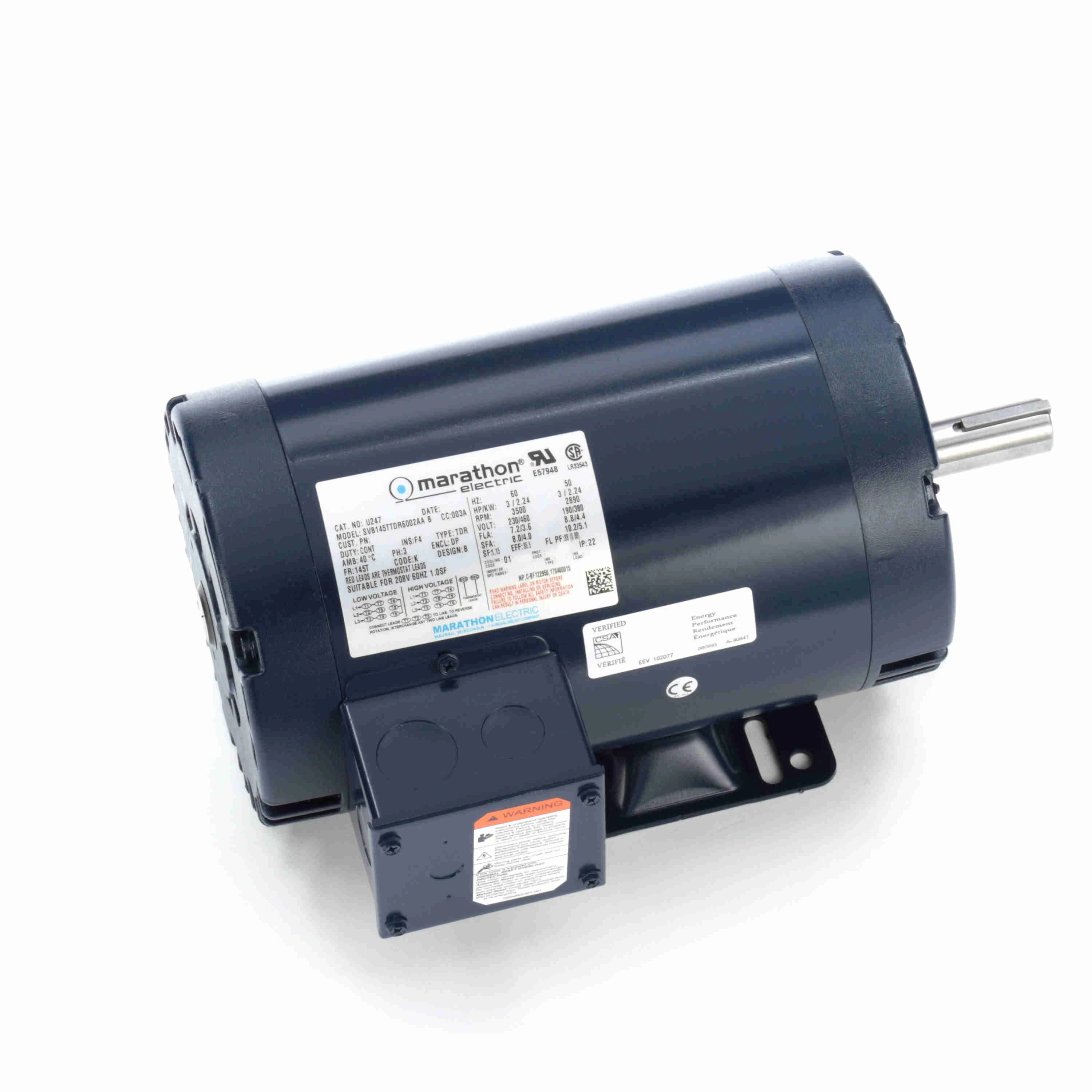

| Item | General Purpose Motor |
| Bearings | Ball |
| Capacitor Required | No |
| Duty | Continuous |
| Efficiency Group | NEMA Premium(R) |
| Frame | 145T |
| Frame Material | Rolled Steel |
| Full Load Amps | 8-7.2/3.6 |
| HP | 3 |
| Hz | 50/60 |
| Insulation Class | F |
| Inverter Rated | Yes |
| Length Less Shaft | 10 5/16" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T-stat |
| Mounting | Base |
| Nameplate RPM | 3500 |
| Nominal Efficiency | 86.5% |
| Number of Speeds | 1 |
| Overall Length | 12 11/16" |
| Phase | 3 |
| Rotation | CW/CCW |
| RPM Group | 3001-3600 |
| RPM Range | 3001-3600 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2.375" |
| Voltage | 208-230/460 |
| Warranty | 1 Years |
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| HS code | 8501524000 |
| Country of Origin | US |
| Product | Model | Efficiency Group | Frame | Full Load Amps | HP | Hz | Insulation Class | kW | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17D3301 | Standard | 56HZ | 3.4-3.6/1.8 | 1 | 50/60 | B | - | 8 11/16" | €611.72 | |
 |
145TTDR5401 | Standard | 145T | 3.8-4/2 | 3/4 | 50/60 | B | - | 10 11/16" | €769.38 | |
 |
056T17D3303 | Standard | 56HZ | 6.2-6.2/3.1 | 2 | 50/60 | B | - | 9 11/16" | €698.50 | |
 |
143TTDR6052 | NEMA Premium(R) | 143T | 3.2-3/1.5 | 1 | 50/60 | B | - | 10 11/16" | €807.88 | |
 |
145TTDR6126 | NEMA Premium(R) | 145T | 4.4-4.4/2.2 | 1.5 | 50/60 | F | - | 10 11/16" | €857.39 | |
 |
145TTDR6132 | NEMA Premium(R) | 145T | 6.2-6/3 | 2 | 50/60 | F | - | 11.187" | €892.22 | |
 |
145TTDR6133 | NEMA Premium(R) | 145T | 6.2-6/3 | 2 | 50/60 | B | - | 11.187" | €925.22 |
