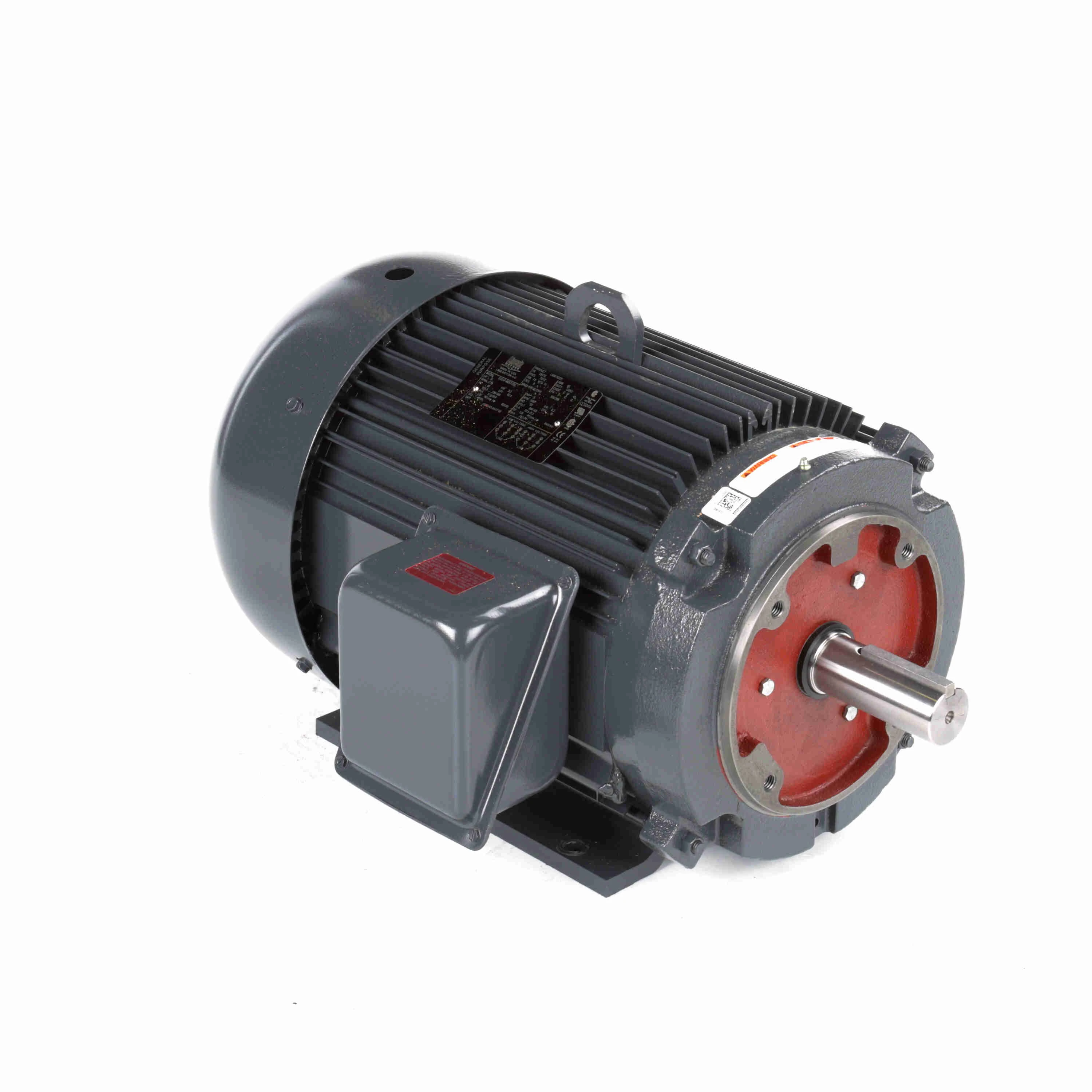

LEESON LM16762 AF4B15TC61 General Purpose Motor, 15 HP, 3 Phase, 60/50 Hz, 230/460 and 380-415V, 1800 and 1500 RPM
Get it by Tuesday, Oct 8
€2,621.99 /unit
Add To Cart
Request a Quote
Payment Methods
Get it by Tuesday, Oct 8
Payment Methods
| Item | General Purpose Motor |
| Code | G |
| Design | B |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | 254TC |
| Full Load Amps | 37.5 / 18.8 |
| HP | 15 |
| Hz | 50/60 |
| Insulation Class | F |
| kW | 11.2 |
| Lubrication | VERIFY |
| Max. Ambient Temp. | 40 |
| Mounting | Rigid |
| Packaging | B |
| Phase | 3 |
| Power Factor | 81 / 84 |
| Rotation | REV |
| RPM | 1800 / 1500 |
| Service Factor | 1.15 / 1.25 |
| Type | TFL |
| Voltage | 230 / 460 |
| Ship weight (kg) | 112.5 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Country of Origin | US |
| Product | Model | Assembly | Design | Frame | Full Load Amps | HP | Hz | Insulation Class | kW | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
102697 | LO102697 | - | S56C | 1.3 / .65 | 1/3 | 50/60 | F | 0.25 | - | RFQ
|
 |
102922 | LO102922 | B | S56C | 1.3 / .65 | 1/3 | 60 | B | 0.25 | - | RFQ
|
 |
110916 | - | B | 56C | 2.8 / 1.4 | 3/4 | 60 | F | .56 | €799.91 | |
 |
119418 | - | B | 56HC | 8 / 4 | 3 | 60 | F | 2.24 | €1,026.66 | |
 |
121179 | - | B | 143TC | 3.2 / 1.6 | 1 | 50/60 | F | 0.75 | €935.41 | |
 |
121180 | - | B | 145TC | 4.8 / 2.4 | 1.5 | 50/60 | F | 1.12 | €969.63 | |
 |
121181 | - | B | 145TC | 5.8 / 2.9 | 2 | 50/60 | F | 1.49 | €1,013.54 |
