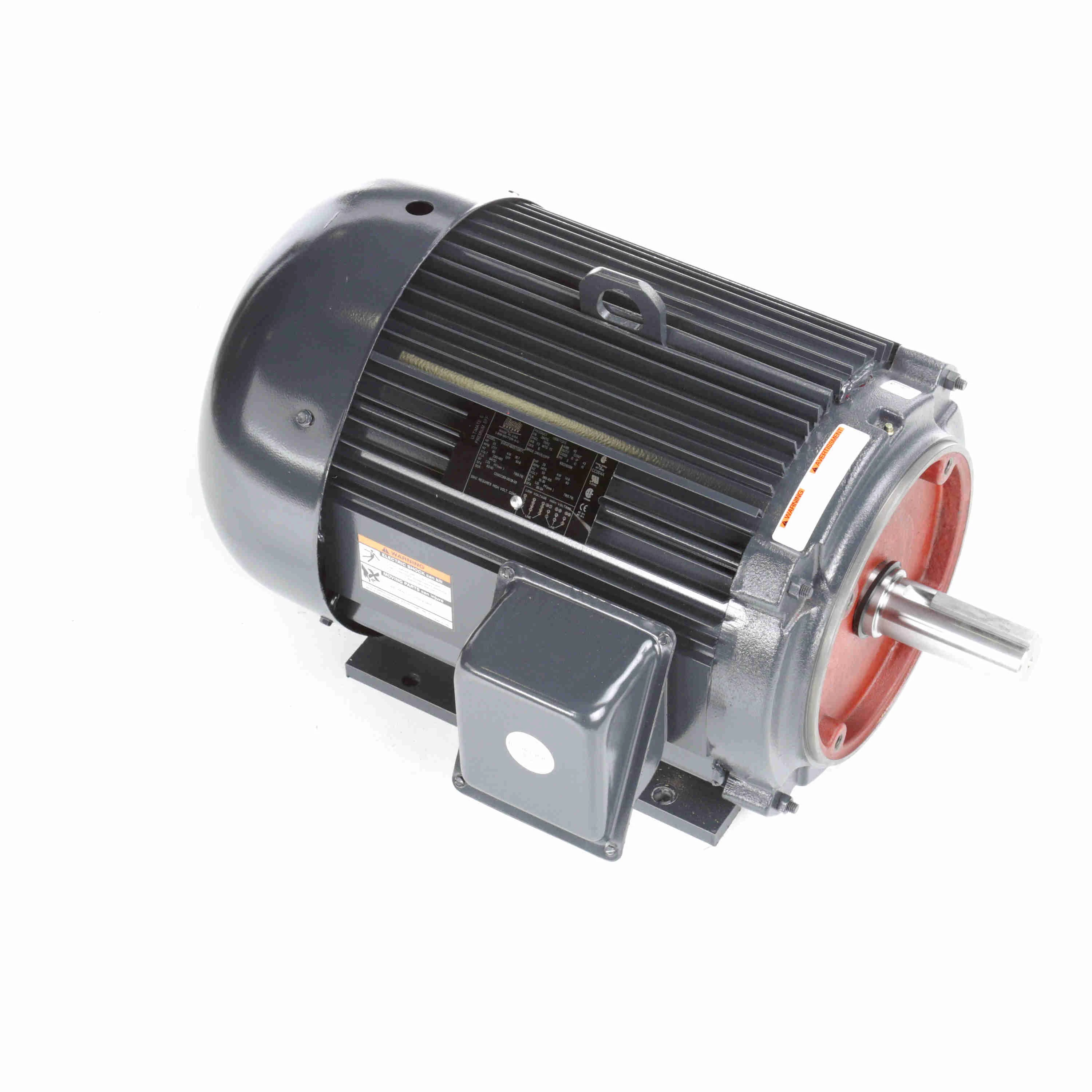

LEESON LM16772 AF4B25TC61Y General Purpose Motor, 20 HP, 3 Phase, 60/50 Hz, 230/460 and 380-415V, 1800 and 1500 RPM
Get it by Tuesday, Oct 1
€3,944.11 /unit
Add To Cart
Request a Quote
Payment Methods
Get it by Tuesday, Oct 1
Payment Methods
Item | General Purpose Motor |
Code | G |
Design | B |
Duty | Continuous |
Enclosure | TEFC |
Frame | 284TC |
Full Load Amps | 64 / 32 |
HP | 25 / 20 |
Hz | 50/60 |
Insulation Class | F |
kW | 18.7 / 14.9 |
Lubrication | VERIFY |
Max. Ambient Temp. | 40 |
Mounting | Rigid |
Packaging | B |
Phase | 3 |
Power Factor | 79 |
Rotation | REV |
RPM | 1800 / 1500 |
Service Factor | 1.25 / 1.15 |
Type | TFL |
Voltage | 230 / 460 |
Ship weight (kg) | 126 |
Ship height (cm) | 56.87 |
Ship length (cm) | 88.9 |
Ship width (cm) | 66.04 |
Country of Origin | US |
Product | Model | Assembly | Design | Frame | Full Load Amps | HP | Hz | Insulation Class | kW | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
102697 | LO102697 | - | S56C | 1.3 / .65 | 1/3 | 50/60 | F | 0.25 | - | RFQ
| |
102922 | LO102922 | B | S56C | 1.3 / .65 | 1/3 | 60 | B | 0.25 | - | RFQ
| |
110916 | - | B | 56C | 2.8 / 1.4 | 3/4 | 60 | F | .56 | €799.91 | ||
119418 | - | B | 56HC | 8 / 4 | 3 | 60 | F | 2.24 | €1,026.66 | ||
121179 | - | B | 143TC | 3.2 / 1.6 | 1 | 50/60 | F | 0.75 | €935.41 | ||
121180 | - | B | 145TC | 4.8 / 2.4 | 1.5 | 50/60 | F | 1.12 | €969.63 | ||
121181 | - | B | 145TC | 5.8 / 2.9 | 2 | 50/60 | F | 1.49 | €1,013.54 |
